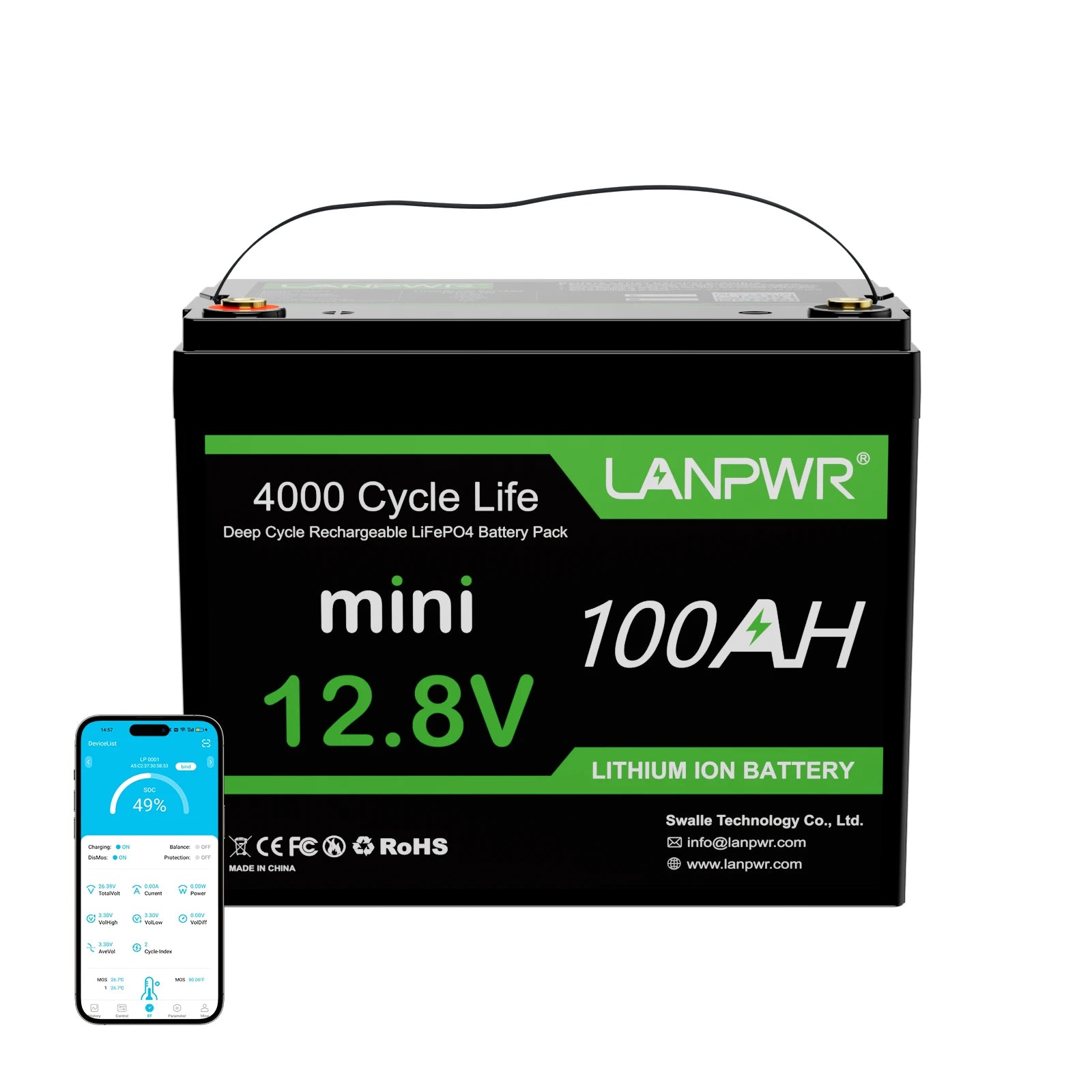

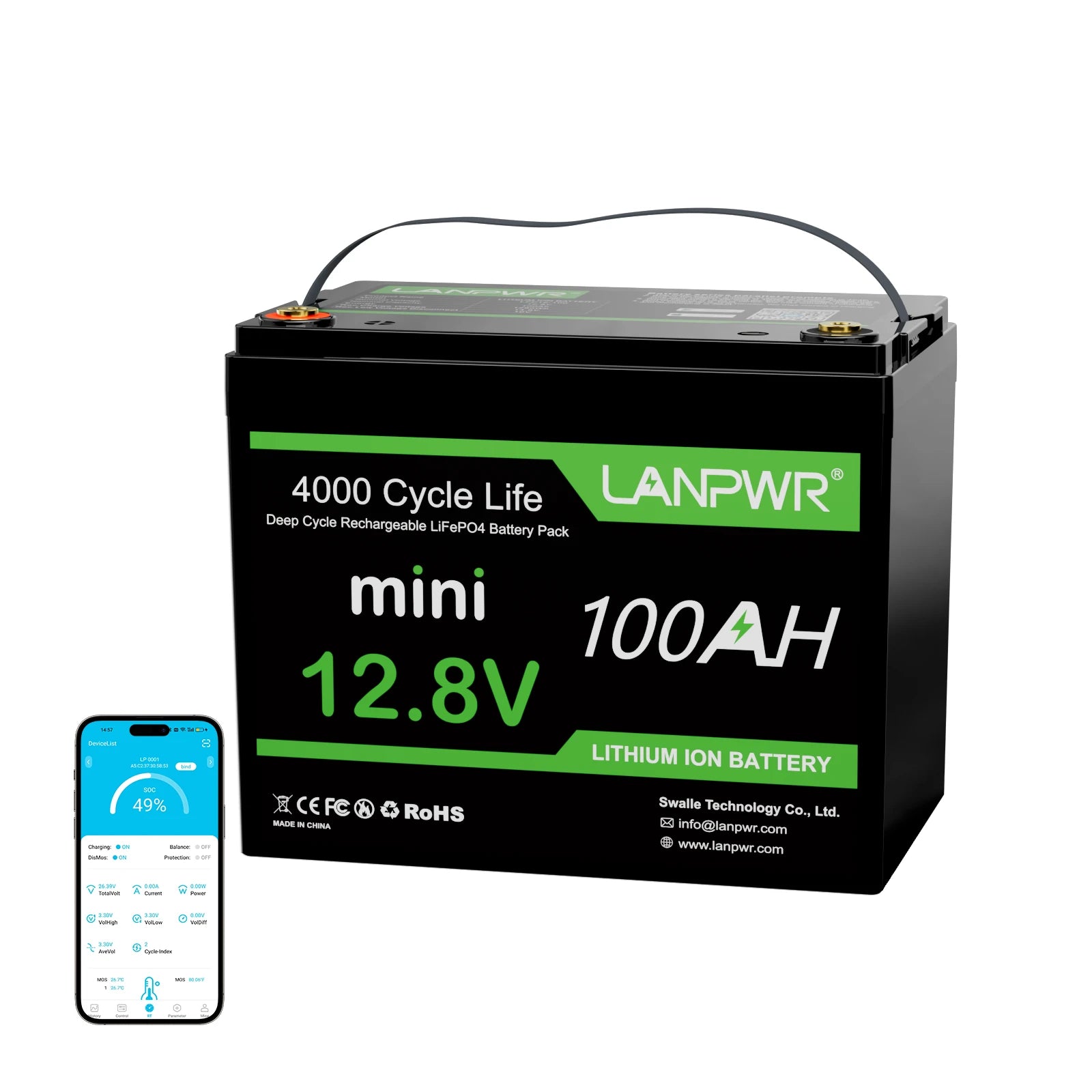

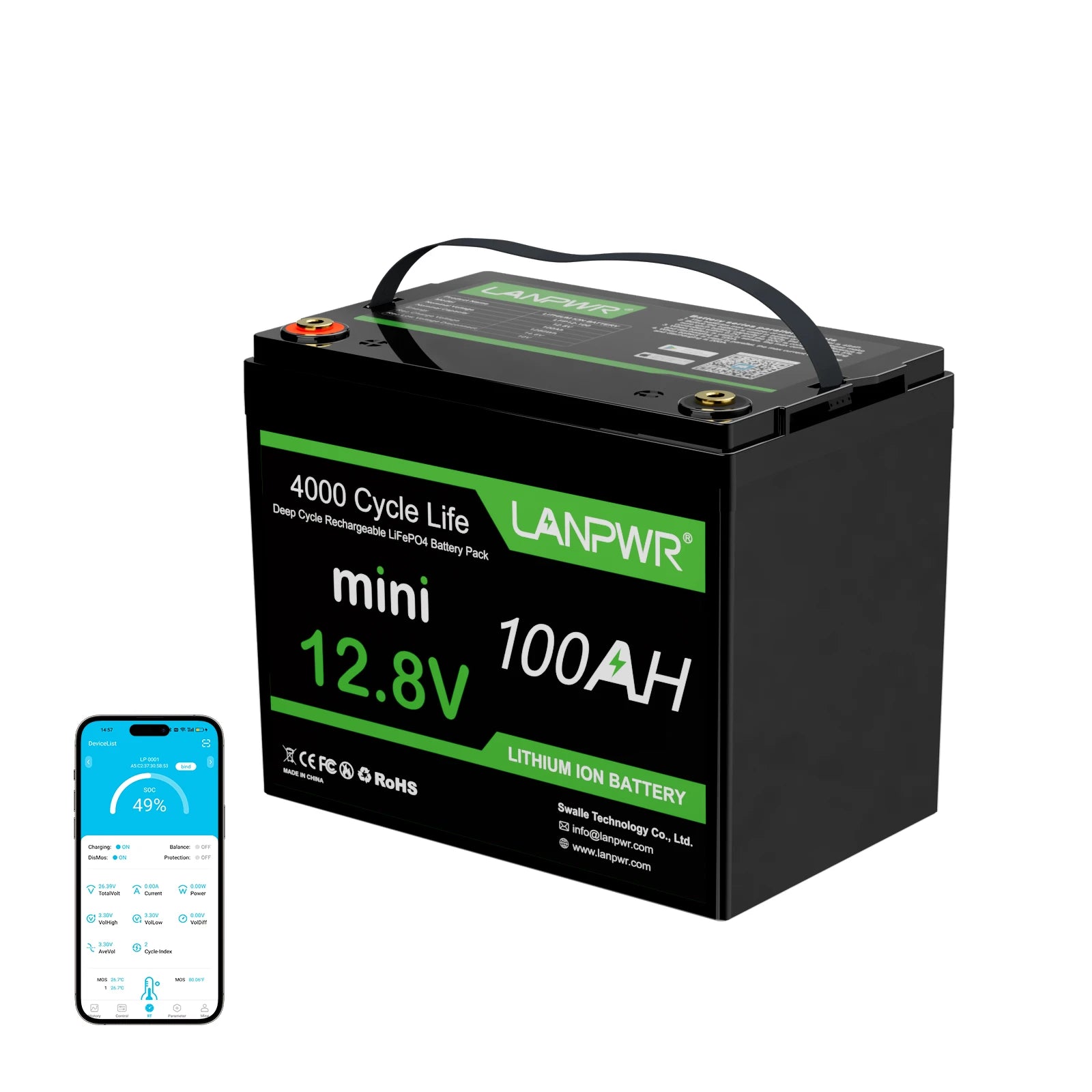

LANPWR 12V 100Ah Mini Bluetooth LiFePO4 Lithium Battery
LANPWR 12V 100Ah LiFePO₄ Battery – Compact, Powerful, and Smart.

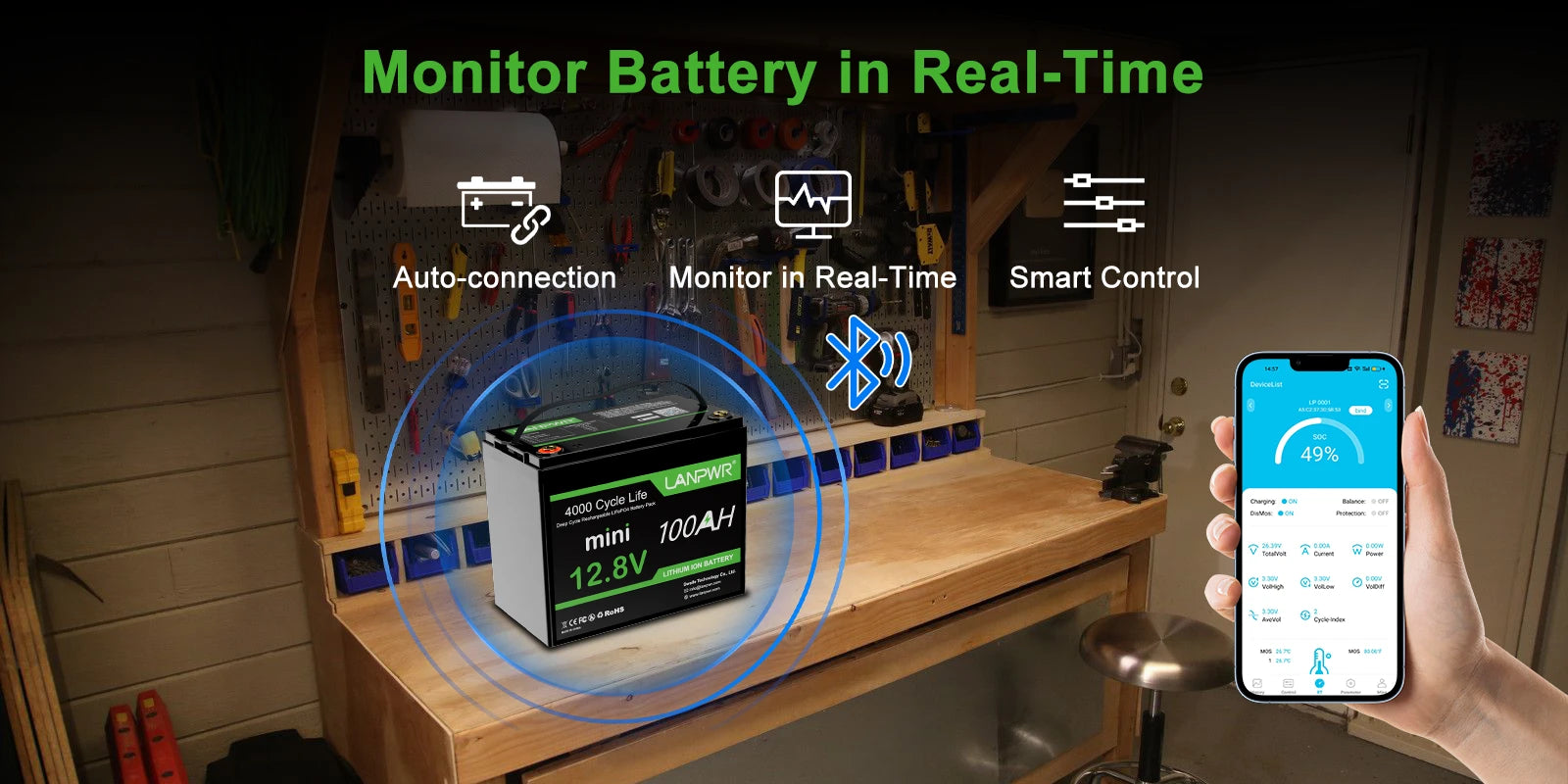

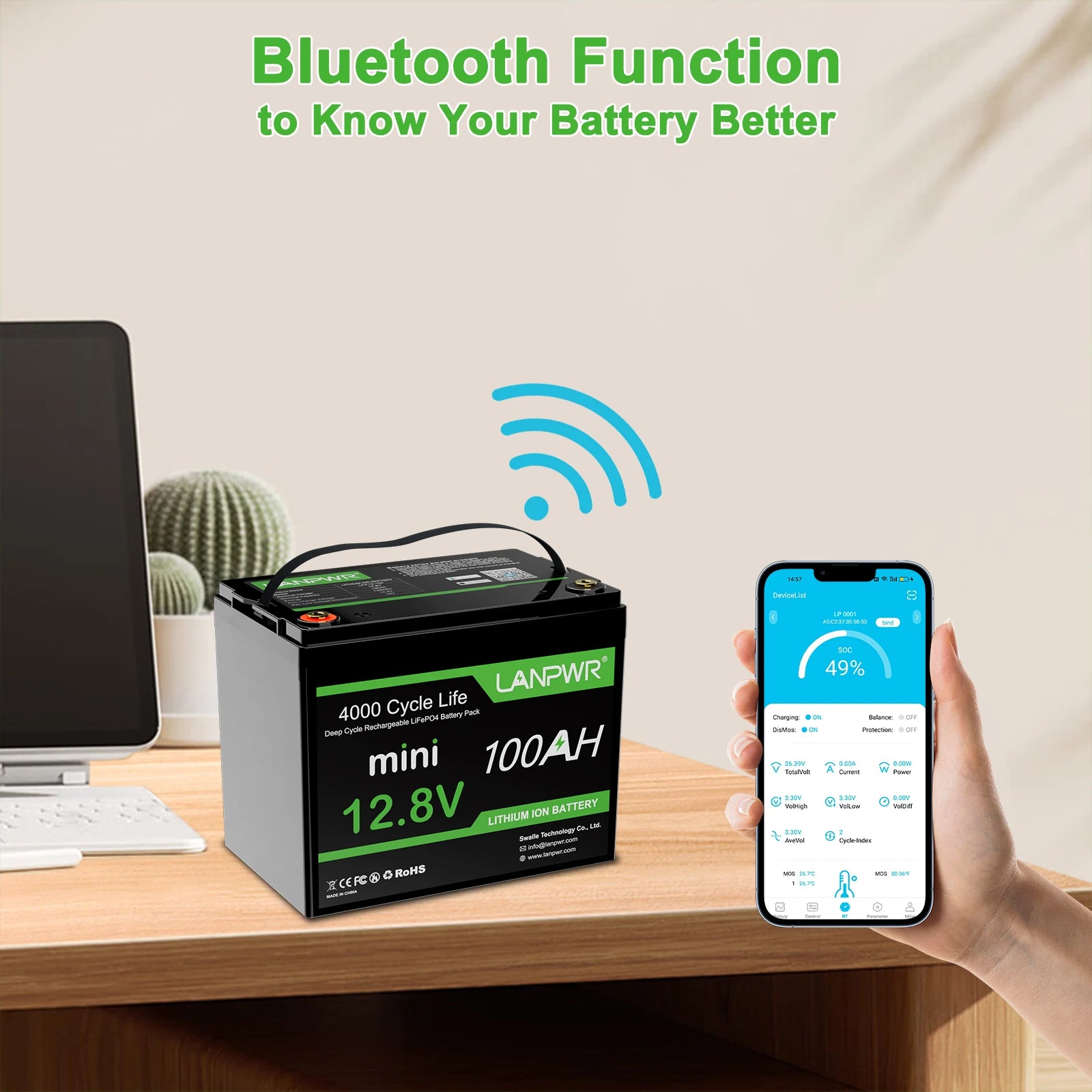

- Real-time monitoring: Bluetooth 5.0 + Xiaoxiang Electric App to track voltage, current, capacity, and cycle-index.
- High performance: 1280Wh energy, 1280W continuous output, 10× faster charging, 2× longer runtime vs. lead-acid batteries.
- Long lifespan: EV-grade A LiFePO₄ cells with 6000+ cycles at 80% DOD.

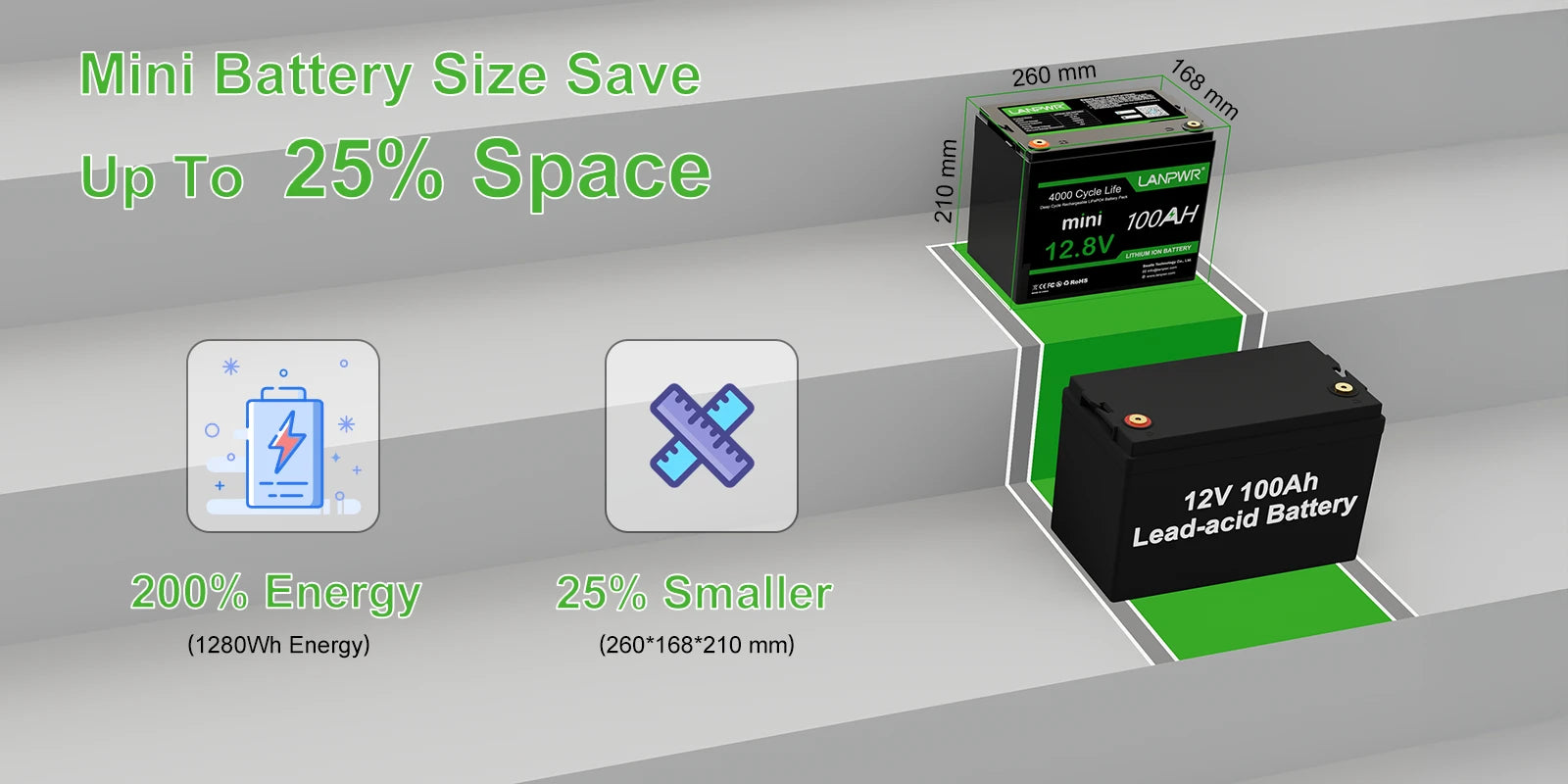

- Compact & lightweight: L260 × W168 × H210 mm, approx. 9.8 kg — 75% the size and 200% the energy of a 12V 100Ah lead-acid battery.

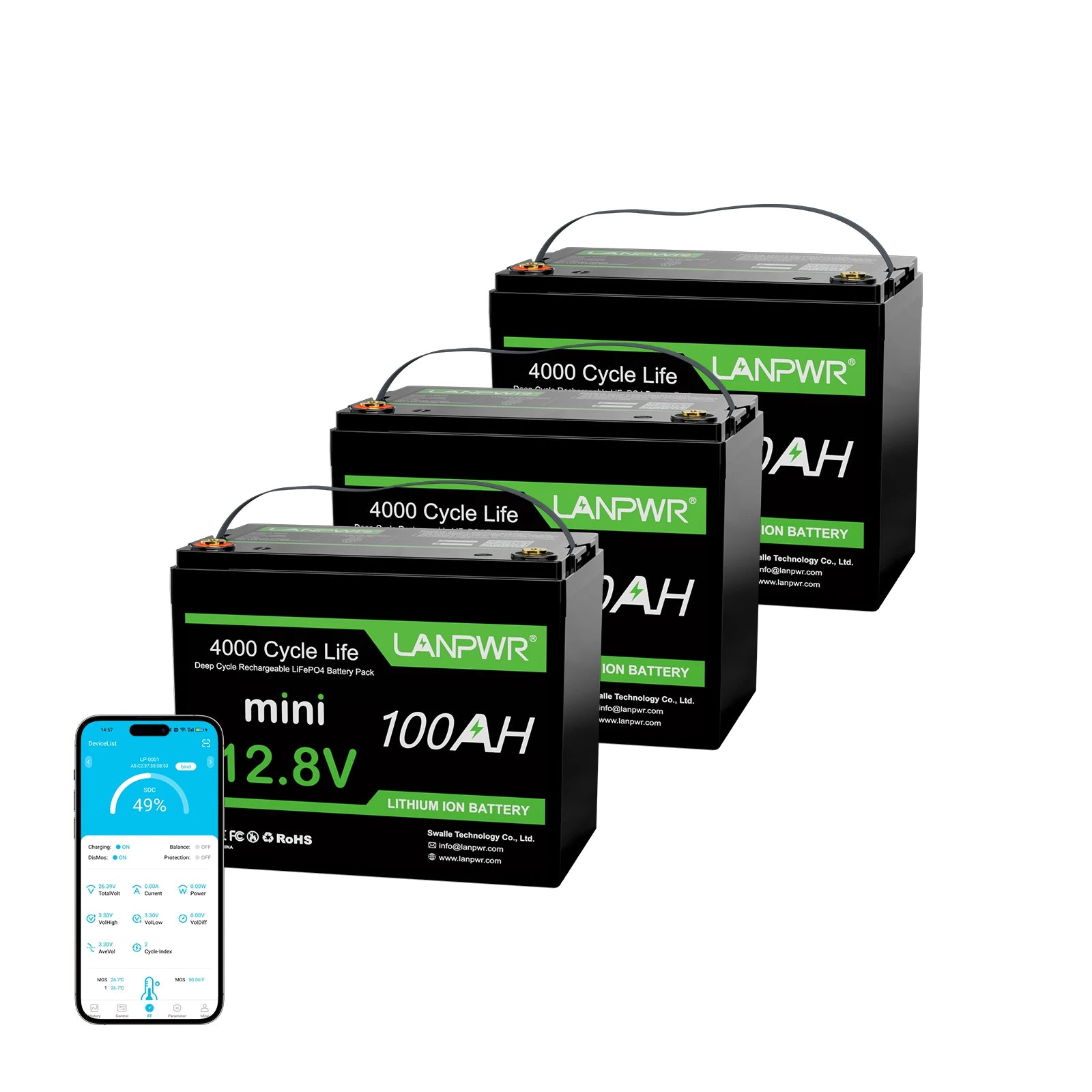

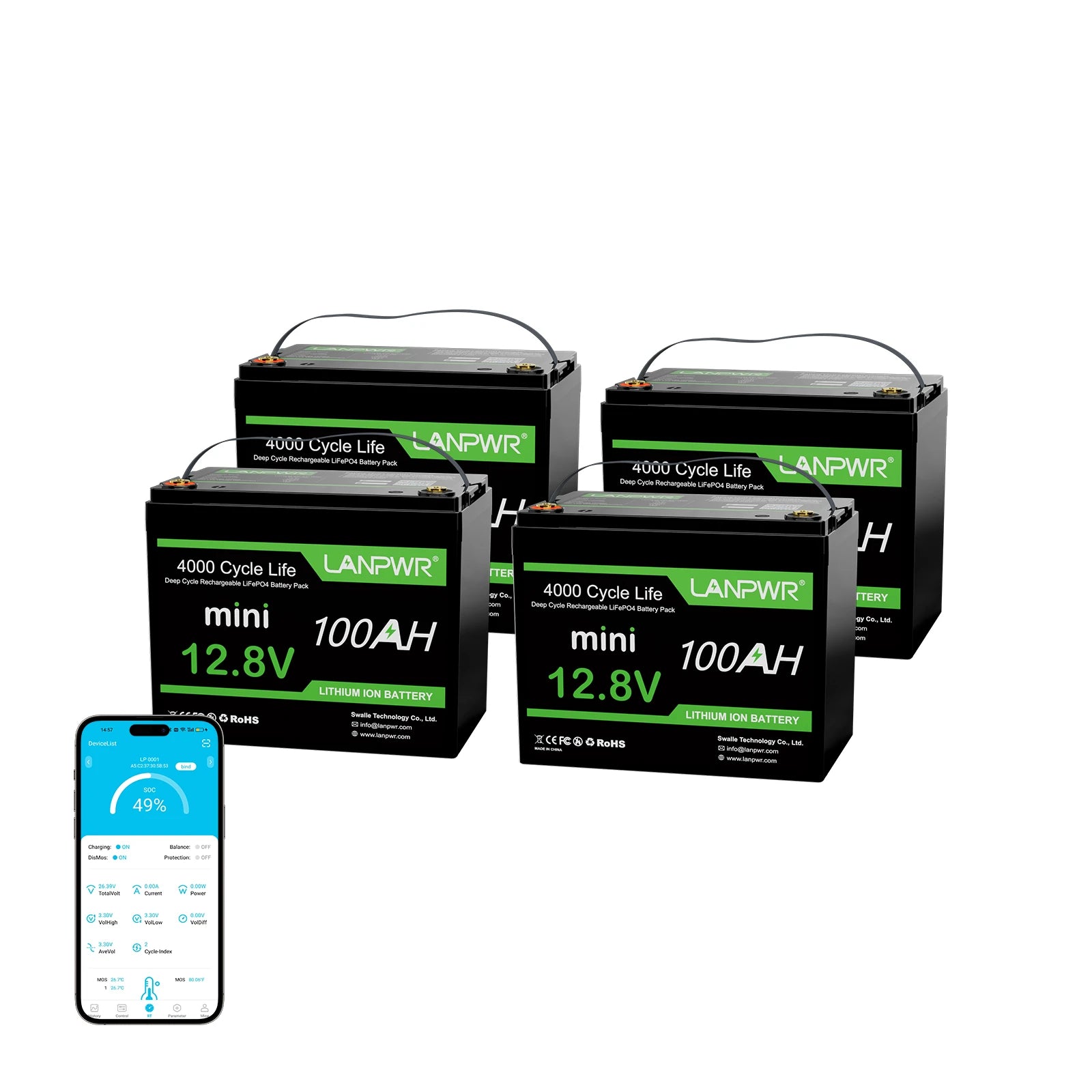

- Expandable: Series & parallel up to 16 batteries (max 4S4P), up to 20.48kWh.
- Safety features: Built-in 100A BMS, low-temperature cut-off protection.
Perfect for RVs, camping, solar, off-grid, and home energy storage.
Warning: Not for starter batteries, golf carts, electric wheelchairs, forklifts, or similar applications. For starter battery needs, see our 12V sodium-ion starter battery series.
Compare products
Compare
Product comparison
Give your customers useful information about your products and showcase differences between them.
Value 1
Value 1
Value 1
Value 2
Value 2
Value 2
Value 3
Value 3
Value 3
Description

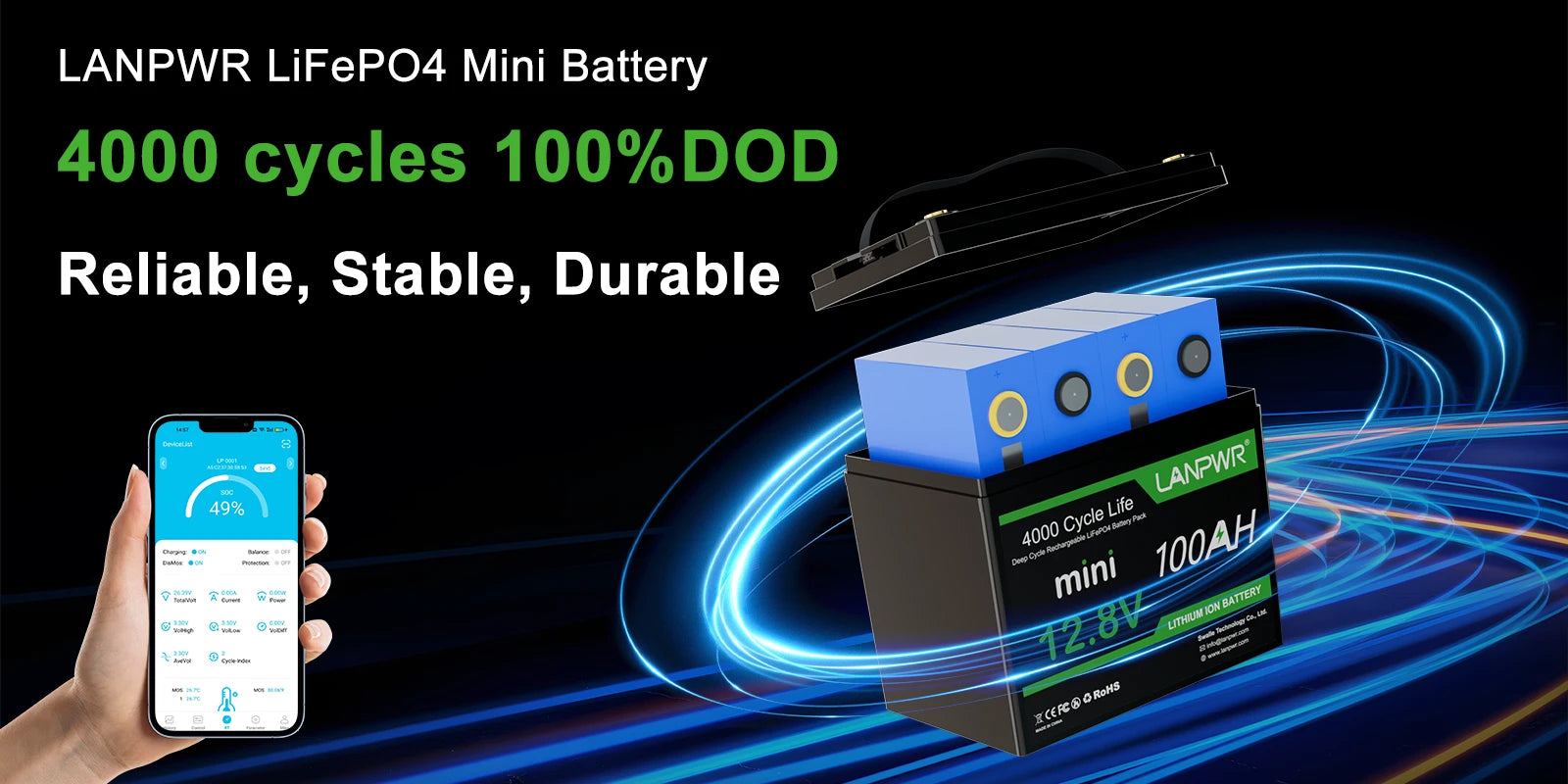

【Premium LiFePO4 Technology & 10-Year Lifespan】Experience superior quality with the Lanpwr 12V 100Ah Mini Bluetooth LiFePO4 lithium battery, featuring high-grade Automotive LiFePO4 Cells that offer increased energy density and consistent output. Surpassing SLA/AGM batteries, it boasts an impressive 10-year lifespan with over 4000 cycles at 100% DOD. UL tested for safety, it far outlasts the typical 200-500 cycles and 3-year life of SLA/AGM alternatives.

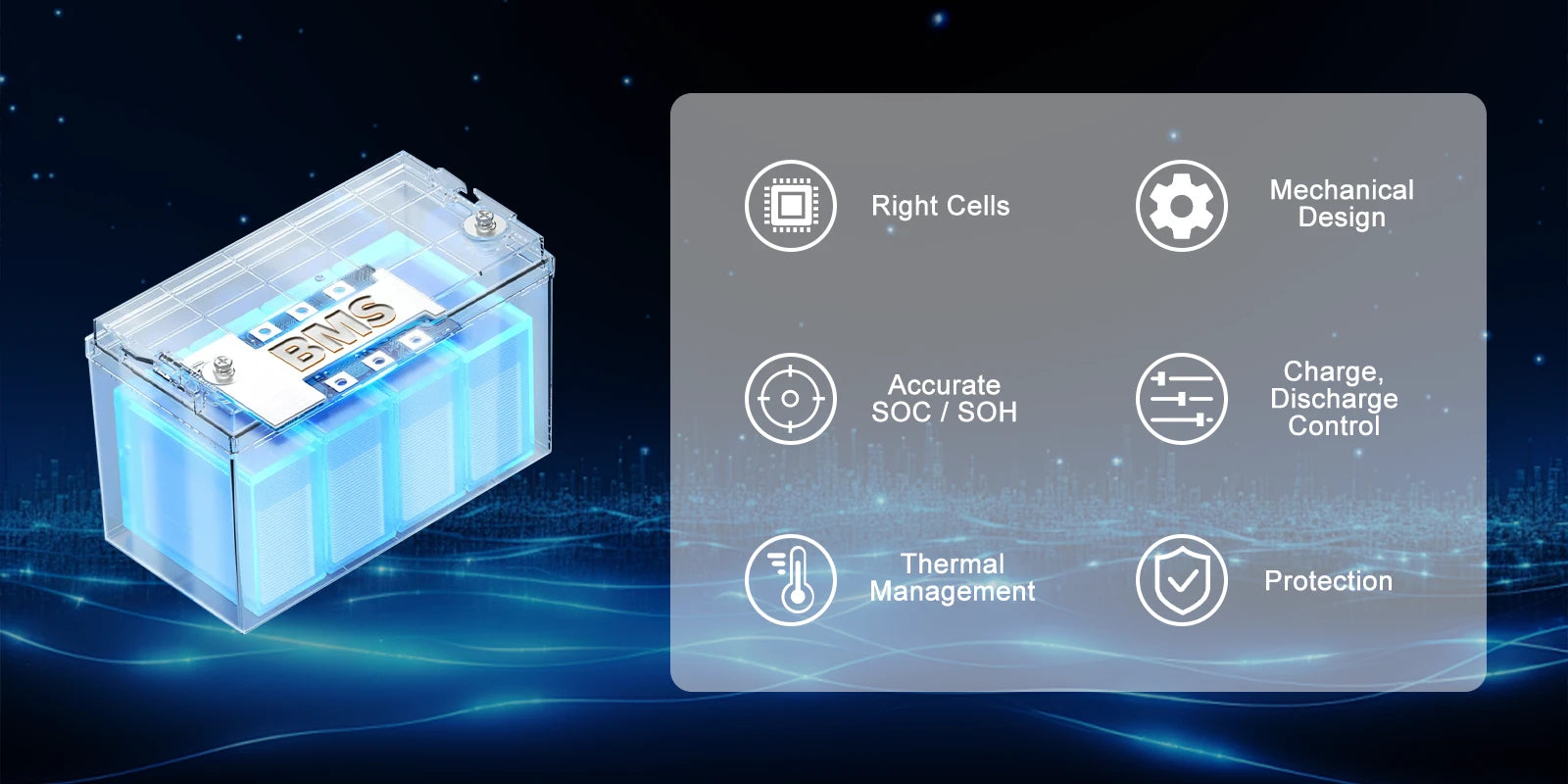

【Comprehensive Protection】With a 100A BMS, the Lanpwr battery provides full protection against overcharge, deep discharge, over-current, overheating, and short circuits, all while boasting an IP65 waterproof rating. Its low self-discharge rate ensures reliable performance in both indoor and outdoor settings.

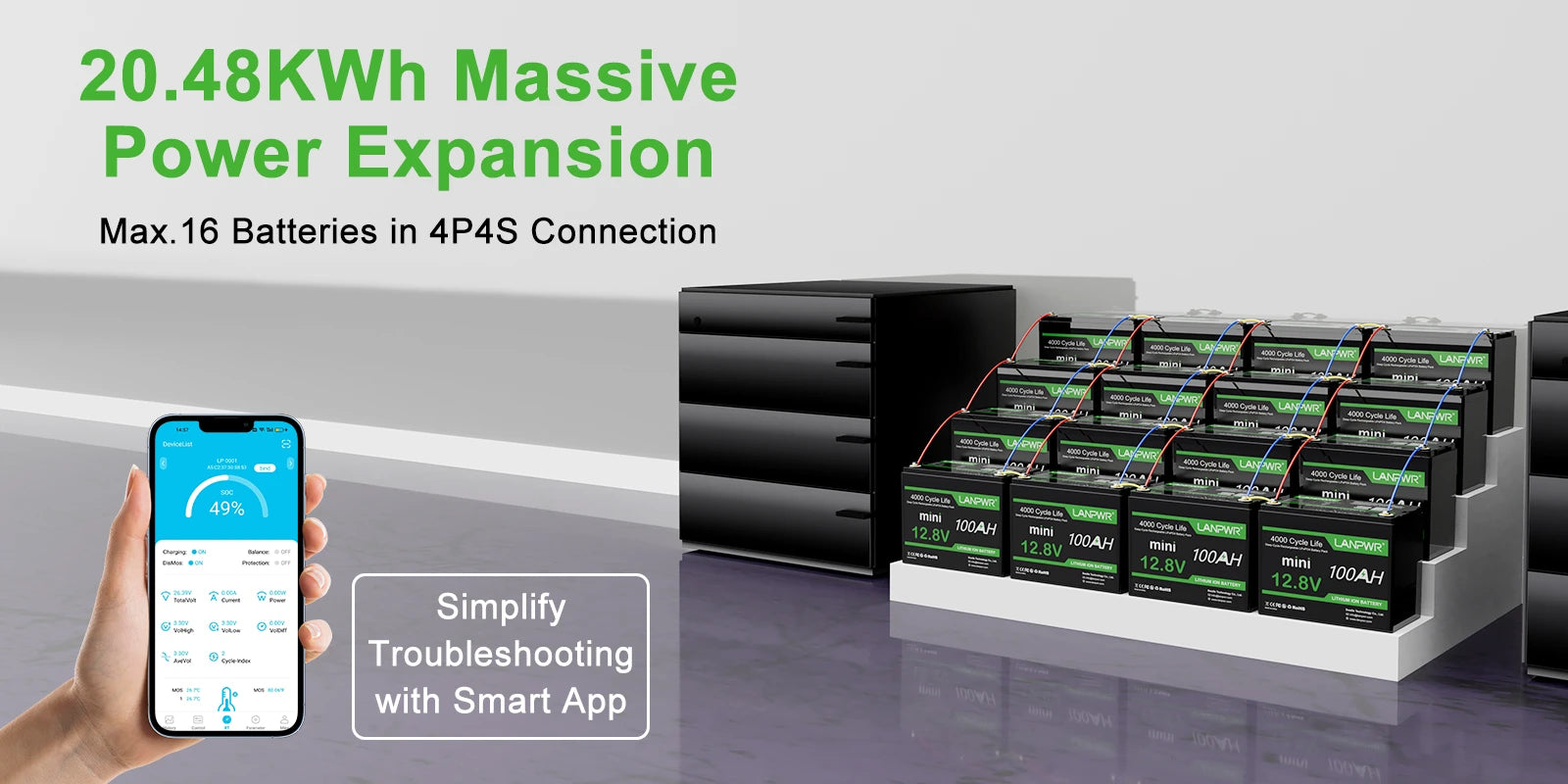

【Versatile and Expandable】LANPWR 12V 100Ah Mini Bluetooth LiFePO4 battery supports configurations up to 4S4P, enabling a robust 48V 400Ah system that delivers 20.48kWh energy and 20.48kW power. Ideal for RVs, solar installations, home energy storage, and off-grid applications, it offers versatile power solutions.

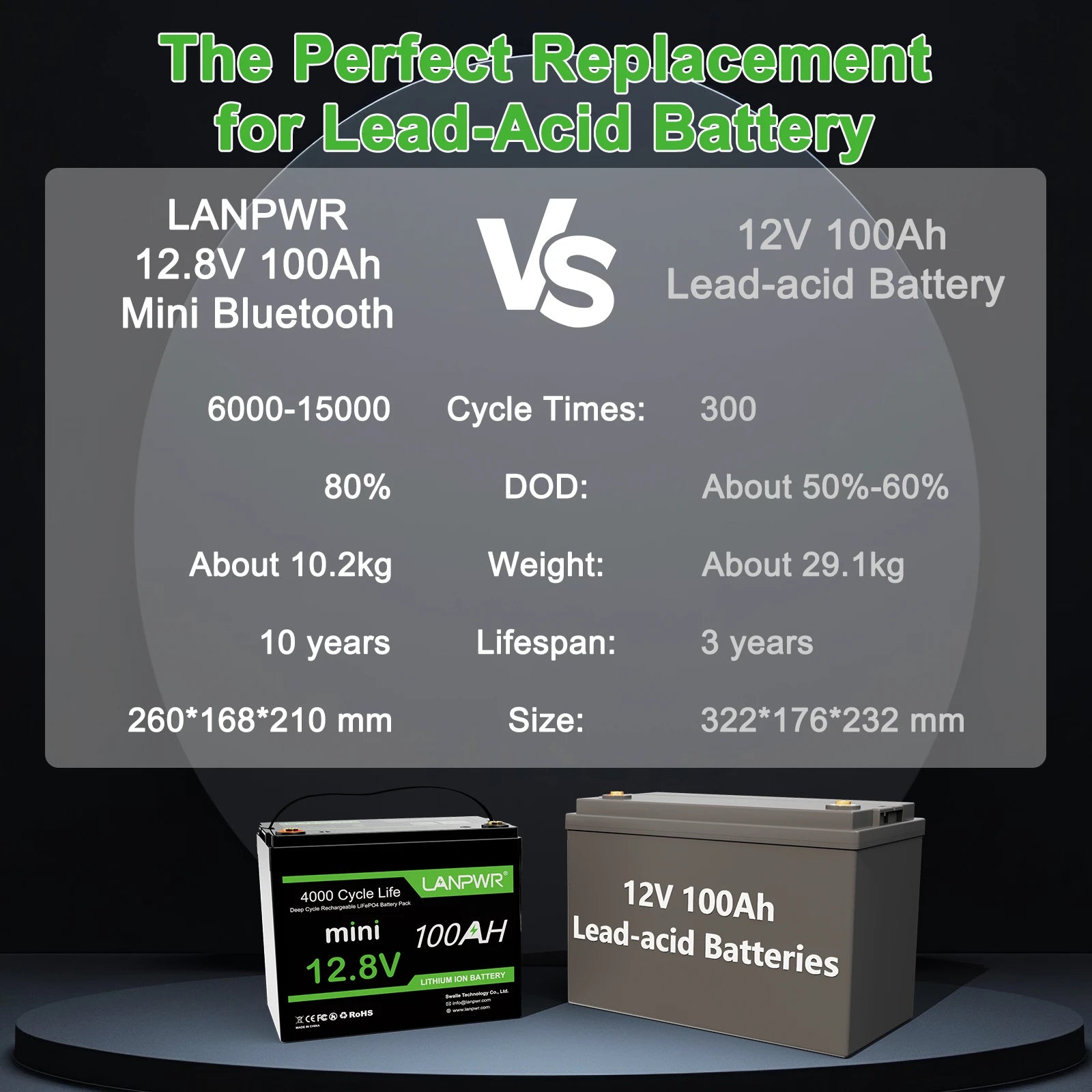

【Compact and Powerful Group 24 Replacement】Weighing in at a mere 9.8kgs, the Lanpwr 12V 100Ah Mini Bluetooth LiFePO4 battery is a remarkably lightweight and compact alternative to traditional AGM Group 24 batteries. Group 24 battery size, 75% the size/200% the energy of a 12V 100Ah Lead-Acid battery, it provides comparable energy.
【Environmentally Friendly and Cost-Effective】The Lanpwr battery is eco-friendly, free from toxic lead, acid, or heavy metals, and demands less maintenance compared to SLA/AGM batteries. It also proves to be more cost-effective in the long run, offering an extended lifespan and higher efficiency. Make the switch to Lanpwr for a superior and sustainable energy solution.
【For Trolling Motor】Lanpwr 12V 100Ah Mini Bluetooth LiFePO4 battery is suitable for energy storage rather than start-up and supports a max. discharge current of 1C. Recommended: LANPWR 12V 100Ah Mini Bluetooth LiFePO4 battery for 30~70lbs thrust trolling motor. (For recommendation on other models of trolling motors or starter batteries coming later this year, please feel free to contact Lanpwr.)

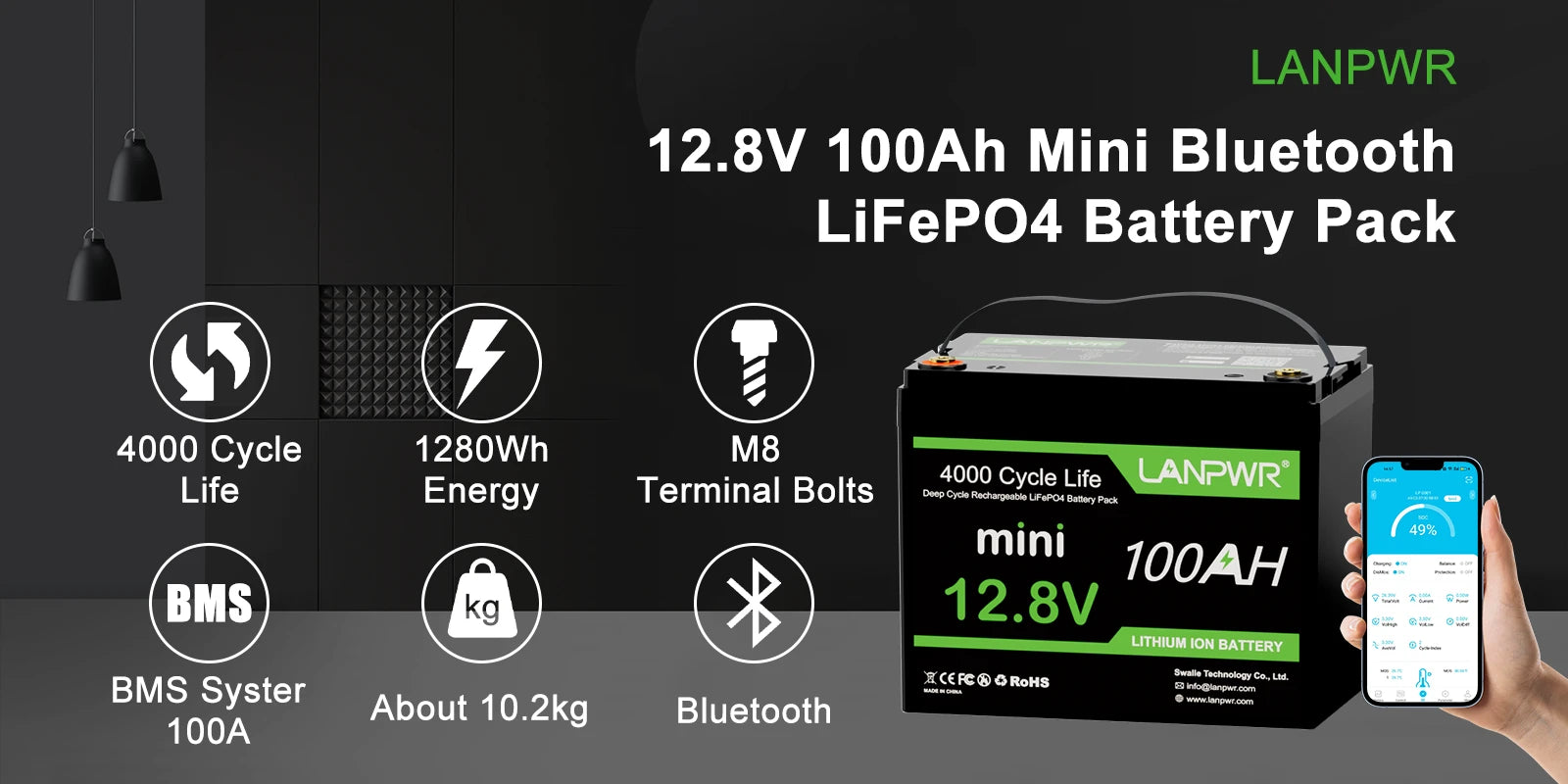

Product specification
Cell Type:
Warranty:
Cycle Life:
Voltage:
Rated Capacity:
Energy:
Max. Expansion (Parallel & Series):
Internal Resistance:
Certifications:
Grand A new LiFePO4
5 Years
≥4000 times
12.8V (Nominal Voltage: 12V)
100Ah
1280Wh
4P4S
≤15mΩ
UL, FCC, CE, RoHS, UN38.3
BMS:
Max. Continuous Output Power:
Max. Continuous Charge Current:
Max. Continuous Discharge Current:
Max. Discharge Current 3 Second:
100A
1280W
100A
100A
110A

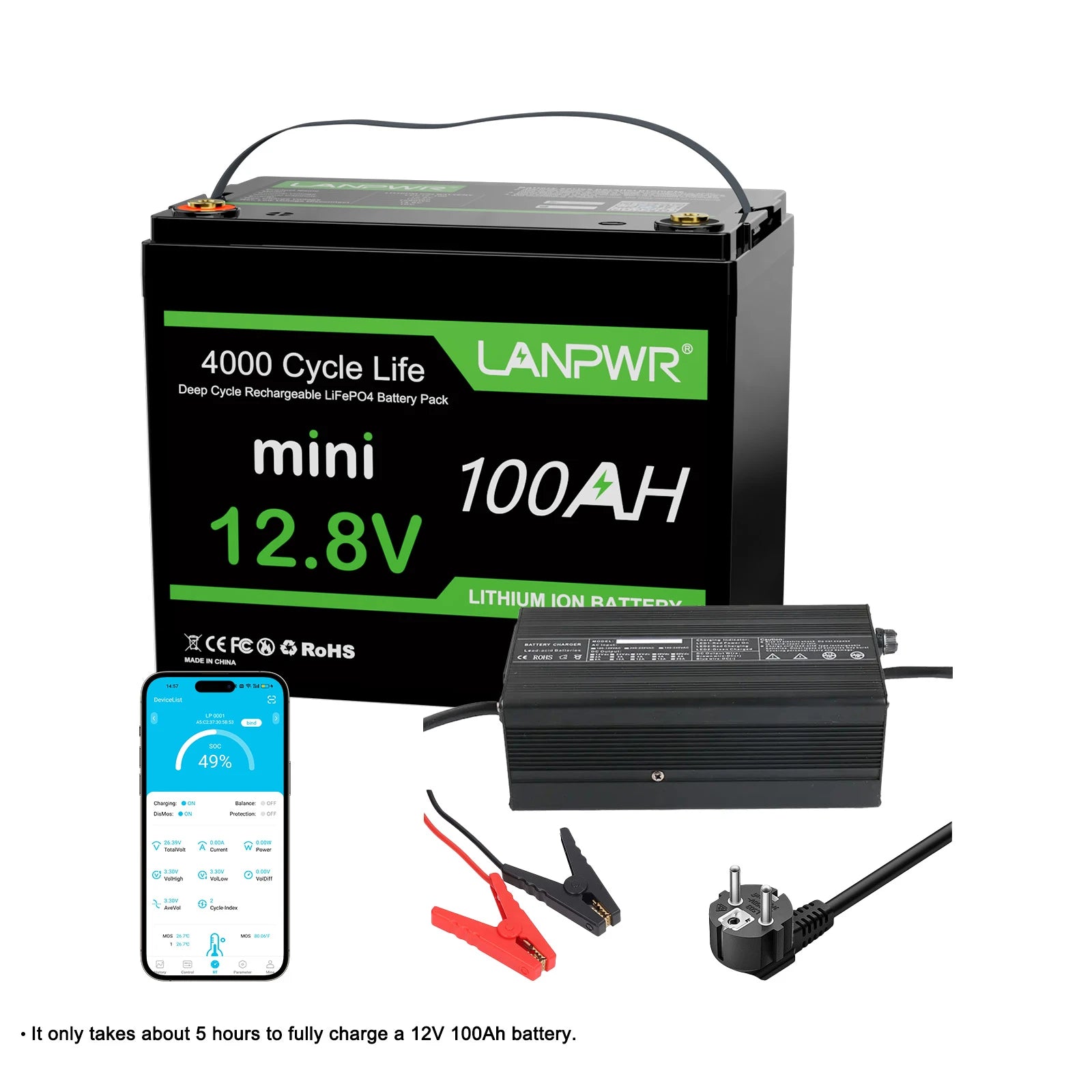

Charge Method:
Charge Voltage:

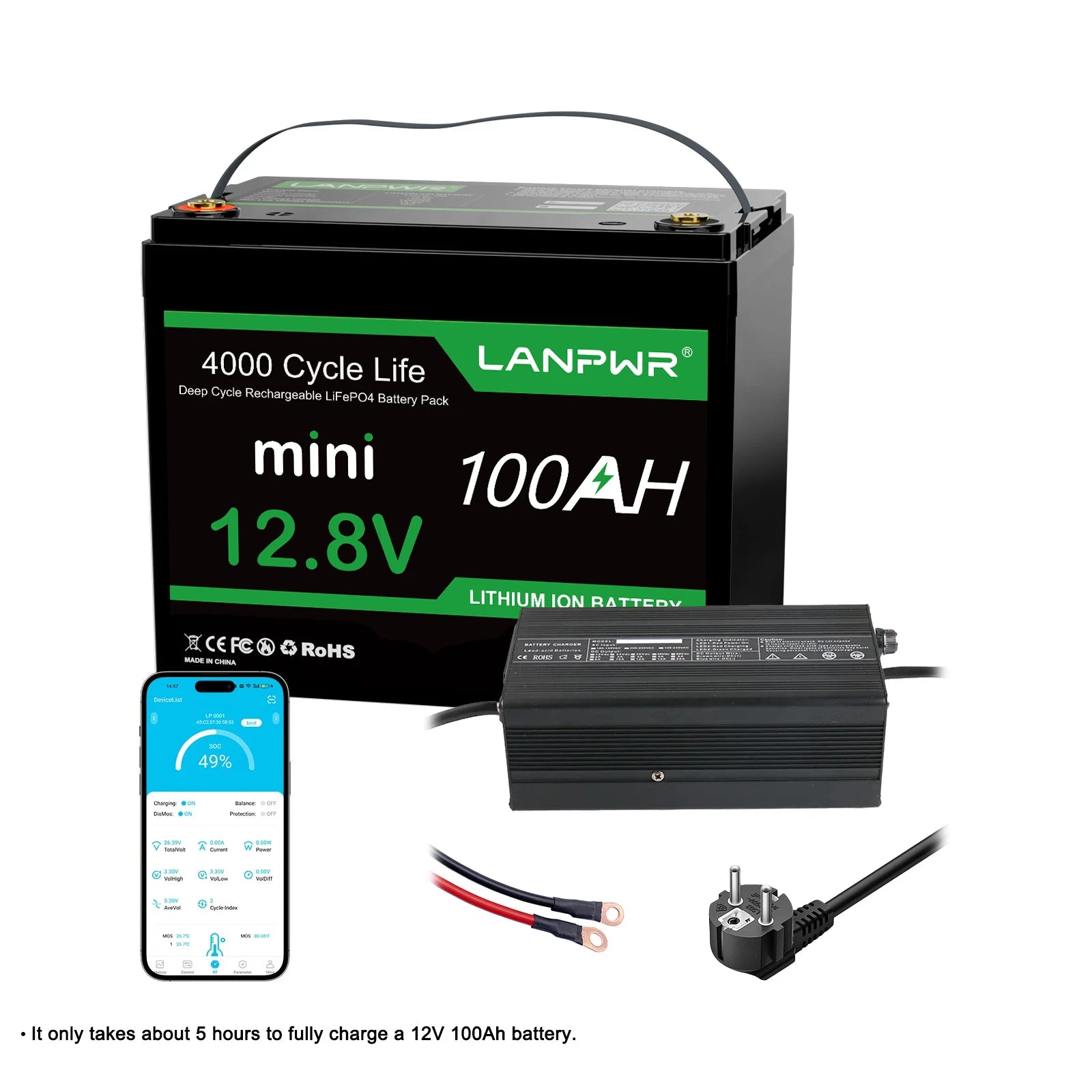

Recommend Charge Current:
Max. Charge Current:
Continuous discharge Current:
CC/CV
14.6V
20A
100A
100A
Charge Temperature:
Discharge Temperature:
Storage Temperature:
Low-Temperature Protection:
0℃ to 50℃ / 32℉ to 122℉
-20℃ to 60℃ / -4℉ to 140℉
-10℃ to 50℃ / 14℉ to 122℉
Yes (32℉/0℃)
FAQ
Q: Are LANPWR LiFePO4 Lithium batteries safe?
A: Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LANPWR lithium cells are CE certified for the highest safety and sustainability standards. All LANPWR LiFePO4 batteries come with an internal Battery Management System, which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LANPWR LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.
Q: Can I use LANPWR LiFePO4 Lithium batteries as starting batteries?
A: No. LANPWR LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices. We also sell starting batteries. If necessary, please contact LANPWR team to obtain the purchase address.
Q: What are the Differences Between a Mini and Group 31 Battery?
A: The main difference between a LANPWR Mini and Mini battery lies in their physical size. Group 24 batteries are generally smaller compared to Group 31 batteries.
Q: How many amp hours does a Mini battery have?
A: LANPWR 12V 100Ah lithium battery is a powerful replacement for Mini batteries due to its larger capacity than traditional AGM or Lead Acid batteries. It has a 100Ah capacity and 1280Wh energy, leaving you peace of mind to handle various situations.

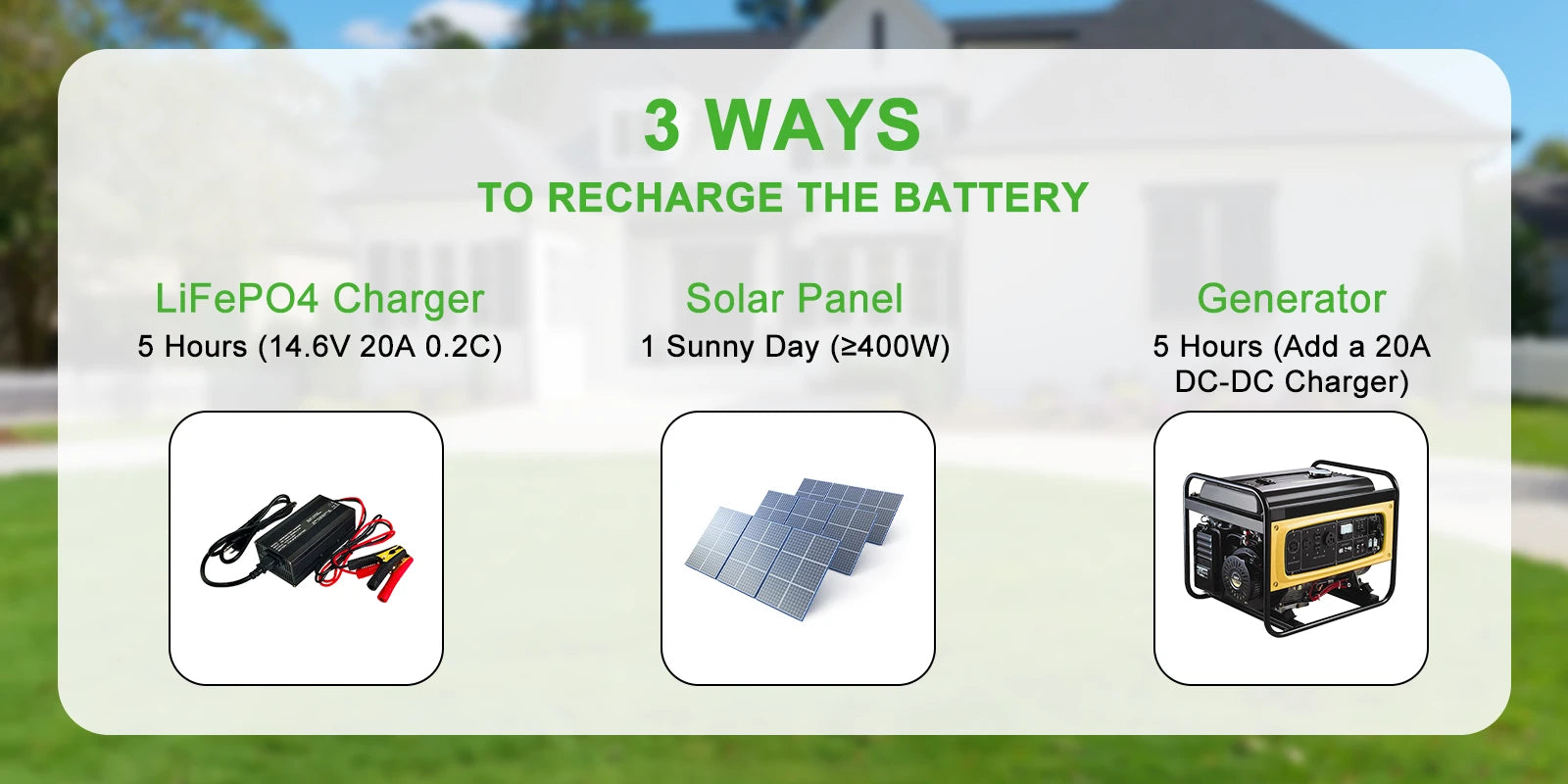

Q: Can I charge LANPWR LiFePO4 Lithium batteries with solar panels?
A: Yes, you can charge LANPWR LiFePO4 lithium batteries with solar panels. You should size your charge controller based on the voltage and current output of your solar array setup. That will ensure that your charge controller can process and regulate the power coming from your solar panels. Take a 24V MAX. 22 amps output solar system as an example, you need a solar charge controller that can handle 24 volts and 27.5 amps (125% of your max current output).
Q: Can I charge LANPWR LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
A: The LANPWR 12V 100Ah LiFePO4 batteries can be safely charged between 32°F to 113°F (0°C to 45°C). But when charging under the freezing point, the battery cells may be damaged.
Q: How do I store LANPWR LiFePO4 lithium batteries?
A: It is recommended to store LANPWR LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃～35℃ (50℉～95℉），45%RH～75％RH.
Q: How long to charge LANPWR LiFePO4 lithium batteries?
A: Write content to answer to common questions your customers may have about your products, shipping policies.

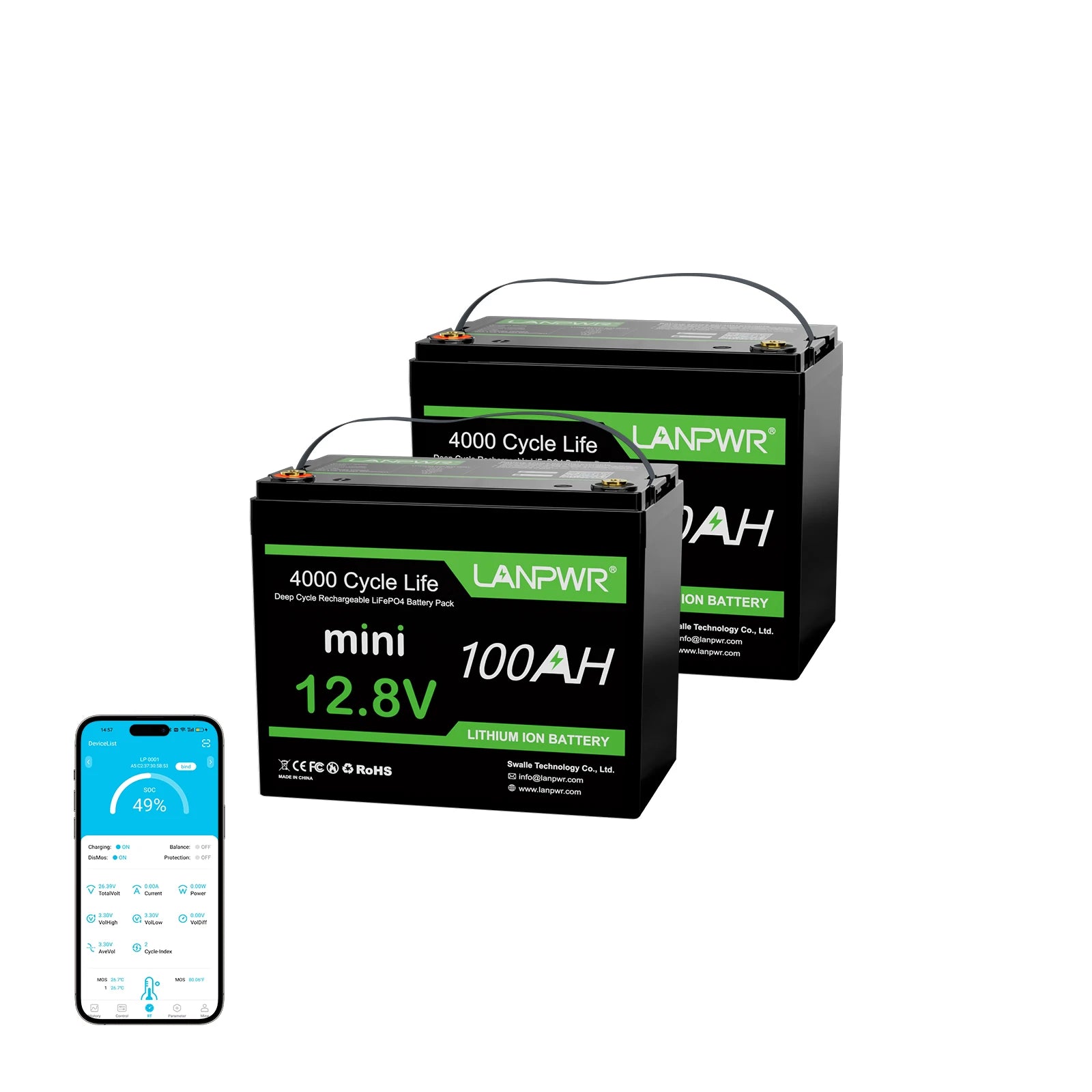

Q: How many batteries can I connect in sereis or parallel?
A: The 12V lithium battery from LANPWR supports maximum connections of 4 in series and 4 in parallel. Allow you to build up a maximum battery system of 16 battery units with 20.48kWh Max. capacity and 20.48kW of Max. power.
Note: To connect in series or /and parallel, batteries should meet the below conditions:
a. identical batteries with the same battery capacity (Ah) and BMS (A);
b. from the same brand (as lithium battery from different brands has their special BMS);
c. purchased in near time (within one month)
